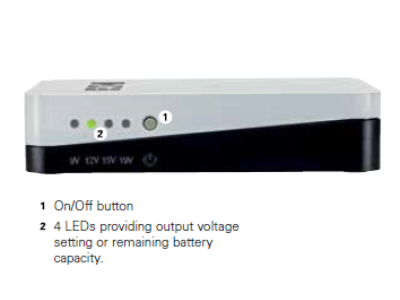

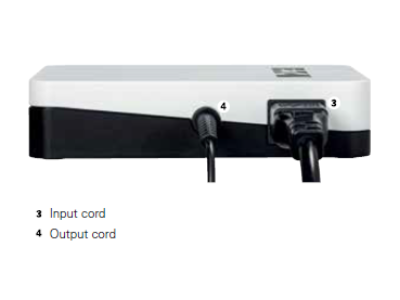

Eaton 3S Mini UPS
Secure service continuity for connected equipment during power outages with an affordable and compact DC UPS providing power to Internet routers, IP cameras, Home assistants and Smart controllers.
Typical runtimes
- Up to 5 hours for an IP camera (3 Watts)
- Up to hours for a TV player (4 Watts)
- Up tp 2 hours for a Wifi extender (7 Watts)
- Up to 80 minutes for a Basic Internet gateway (9 Watts)
- Up to 40 minutes for an Advanced Internet gateway (15 Watts)
To open the datasheet, click here.
Input voltage
90-264V AC
Input frequency
50/60Hz
Output voltage/Amps
9V/3A - 12V/3A - 15V/2,4A - 19V/1,89A
Output connection
Barrel adaptors (5,5 x 2,5 / 5,5 x 2,1 / 4,75 x 1,7 / 3,5 x 1,35)
Power rating
36W
Battery type
Li-Ion
Battery capacity
3,7 V/2200 mAh x 2
UPS dimensions W x H x D
95,5 x 30 x 136 mm
