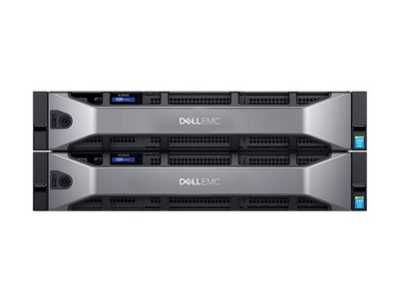

Dell EMC SC9000 Array Controller
Optimize the core of your business. Turbocharge your data center and lower TCO with the fast, highly scalable Dell EMC SC9000.
Max SAN hosts: 500
Max initiator ports: 1000
Max LUN size: 500TB
Max number of LUNs: 2000
Max number of snapshots: 32,000 Max IOPS: 2,220,000*
Max IOPS:(with latency less than 1ms) 2,085,000*
Max IOPS (80% reads, 20% writes): 502,000*
Max throughput (reads): 33,000 MB/s*
Max throughput (writes): 19,000 MB/s*
Contact usProcessor:
Dual 3.2GHz 8-core Intel® Xeon® processors per controller
Controllers:
2 (active/active) per array
System Memory:
256GB per controller (512GB total per array)
Maximum drive count:
1024 per array ( With 4-port 16Gb SAS card)
