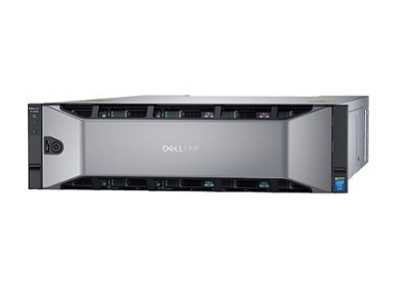

Dell EMC SC7020 Storage Array
Future-proofed flexibility with the SC7020 Overcome diverse storage challenges with the flexible, powerful future-ready SC7020.
Max SAN hosts: 500
Max initiator ports: 1000
Max LUN size 500TB
Max number of LUNs: 2000
Max number of snapshots: 16,384 Max IOPS: 1,200,000*
Max IOPS: (with latency less than 1ms) 1,050,000*
Max IOPS (80% reads, 20% writes): 346,000*
Max throughput (reads): 29,000 MB/s*
Max throughput (writes): 14,000 MB/s*
Contact usProcessors:
Dual 2.5GHz 8-core Intel Xeon processors per controller
Controllers:
2 dual-active controllers per array
Max System Memory:
256GB per array (128GB per controller)
Internal Storage:
30 x 2.5” drive bays
Maximum drive count:
500 (30 internal, plus 470 external)
